Compact Broadband Rect->Circ Transition

A broadband rectangular to circular waveguide transition design(Figure 1) is described here. The peak return loss level is designed to be less than -40 dB as canbe seen in Figure2. ]

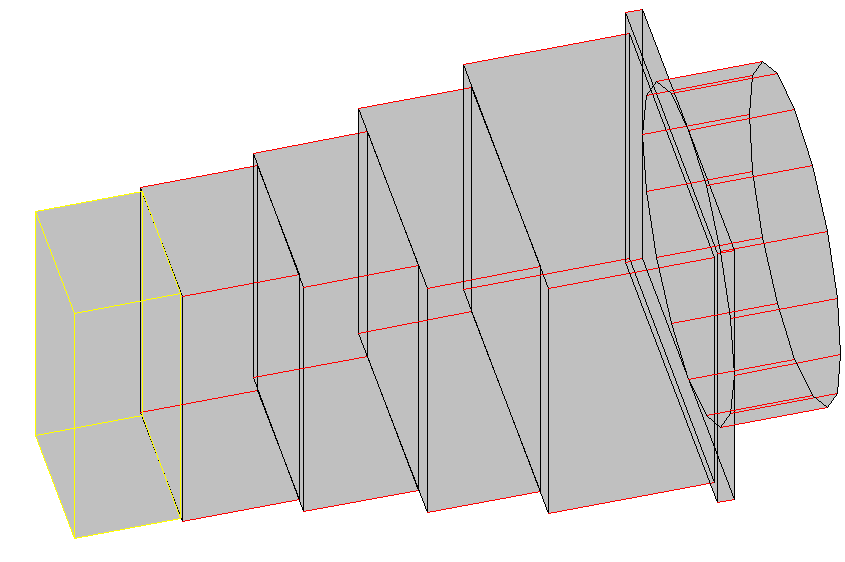

Figure 1

FIGURE 1: A Compact Broadband Rect->Circ Transition.

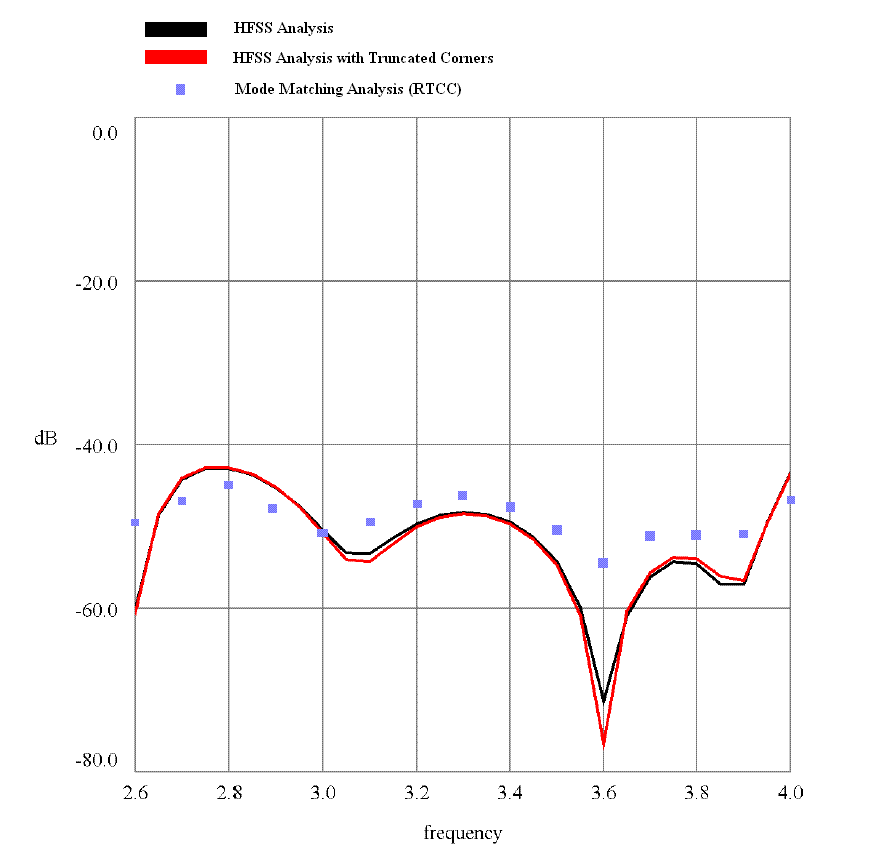

Figure 2

FIGURE 2: Predicted Return Loss Response.
